Mô tả
Display
| Item | Specification |
|---|---|
| Display Type | 7″ 16:9 TFT Color LCD |
| Color | 16M Colors (24 bit) |
| Display Area (mm) | 154.214(H) × 85.92(V) |
| Resolution (dot) | 1024 × 600 |
| Backlight Type | LED |
| Backlight Life | 50,000 Hours |
Touch
| Item | Specification |
|---|---|
| Touch Type | Analog resistive film |
| Resolution (cell) | 1024 × 600 |
| Touch Life | 100,000 times or more |
Interface
| Item | Specification |
|---|---|
| Serial COM1 | RS-232C, RS-422/485 Asynchronous; Data bit: 7/8 bits; Stop bit: 1/2 bits; Parity bit: None/Odd/Even; Baud rate: 2400–115.2 Kbps; Connector: DSUB 9 pin |
| Serial COM2 (2 Pin) | RS-485 Asynchronous; Data bit: 7/8 bits; Stop bit: 1/2 bits; Parity bit: None/Odd/Even; Baud rate: 2400–115.2 Kbps; Connector: 2 pin connector |
| Serial COM3 | RS-232C Asynchronous; Data bit: 7/8 bits; Stop bit: 1/2 bits; Parity bit: None/Odd/Even; Baud rate: 2400–115.2 Kbps; Connector: DSUB 9 pin |
| Ethernet | IEEE802.3/IEEE802.3u 10BASE-T/100BASE-TX; Connector: RJ45 × 1 |
| USB Host | USB 2.0 Compatible; Connector: USB Type A × 1 |
| USB Device | USB 2.0 Compatible; Connector: USB Type C × 1 |
Memory & Others
| Item | Specification |
|---|---|
| Memory | 256MB DDR3 |
| Storage | 256MB Flash ROM |
| Real Time Clock | Built-in |
Power
| Item | Specification |
|---|---|
| Input Voltage | 24Vdc (9–28Vdc) |
| Power Consumption | 10W |
| Voltage Sag | 24Vdc, Within 5ms |
| Insulation Resistance | 500Vdc, 50MΩ |
Environment
| Item | Specification |
|---|---|
| Operation Temperature (°C) | 0–+50 |
| Storage Temperature (°C) | -20–+60 |
| Operation Humidity (%RH) | 10–90 (No dew) |
| Atmosphere | No corrosive gas |
| Vibration Endurance | Amplitude: 10<F<25Hz (2G), X, Y, Z each direction (for 30 minutes) |
| Electrostatic Discharge | Connective discharge from EN61000-6-2:2019 and EN61000-6-4:2019: ±4kV; RoHS: lightning surge ±1kV, group pulse ±2kV, electrostatic contact 4kV, air discharge 8kV |
| Shock Endurance | 10G, X, Y, Z each direction (for 3 times) |
| Ground Connection | Class 3 (100Ω or less) |
| Certification | CE |

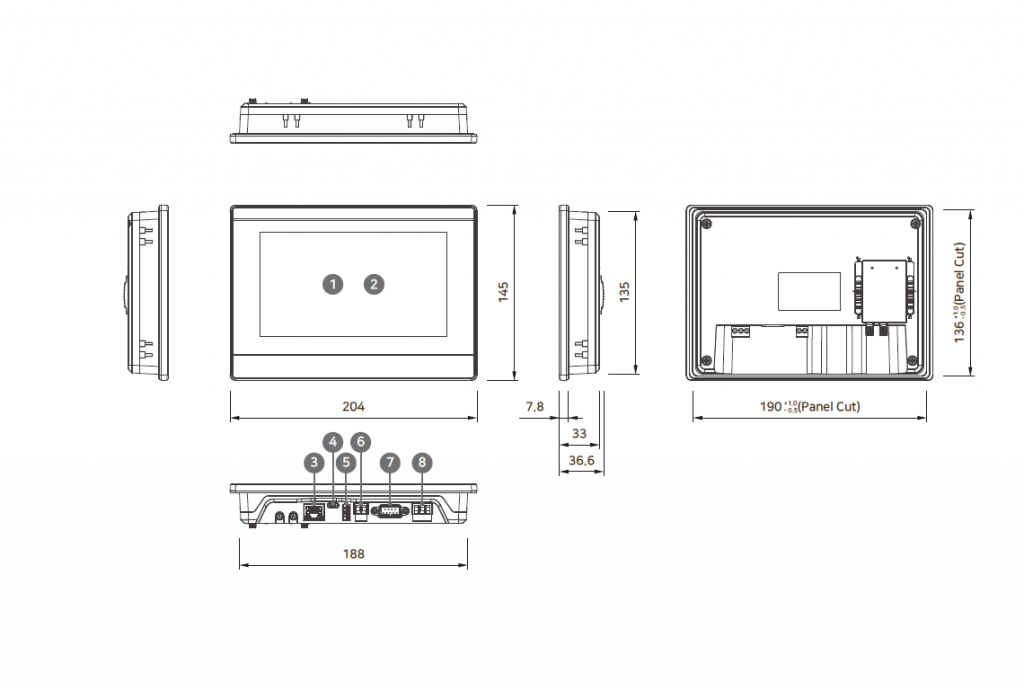

Structure
| Item | Specification |
|---|---|
| Panel Cut (mm) | 190 × 136 |
| External Dimension (mm) | 204 × 145 × 36.6 |
| Weight (g) | 476 |
| Cooling System | Natural air circulation |
| Case Material | Plastic |
| Feature | Description |
|---|---|
| Dual Core CPU | Cost-effective dual core CPU for universal usage |
| 16M Full Color | Bright full color graphics |
| High Resolution | 1024 × 600 high resolution in 7 inch screen |
| All-in-one body with a sleek design | Premium all-in-one design for an elegant look and easy handling |
| Optimized Interface Configuration | 2 serial channels, 1 Ethernet port, 1 USB port |
