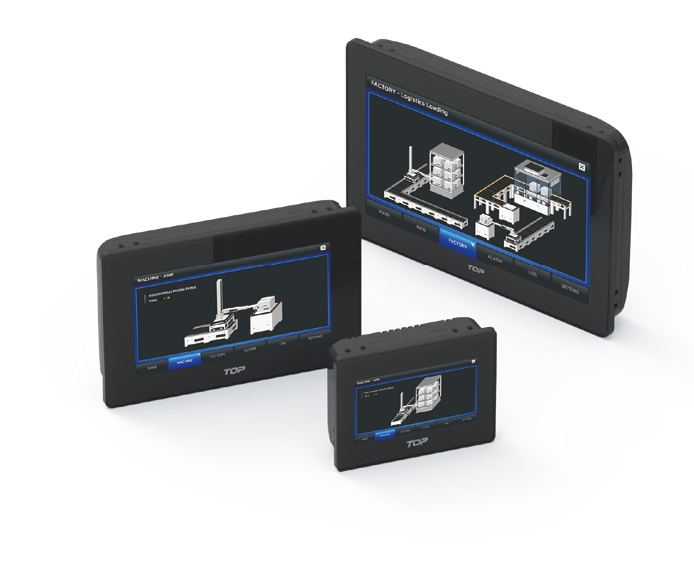

TOPRB0700WD
Liên hệ: 0243 8 771 700
Maker MX On (Korea)
- Miễn phí vận chuyển
- Hỗ trợ kỹ thuật 24/7
- Bảo hành 1 năm, chăm sóc trọn đời
Mô tả
| Functional | TOPRB1000WD | TOPRB0700WD | TOPRB0400WD | |
|---|---|---|---|---|
| Display | Display Type | 10.1" TFT Color | 7" TFT Color | 4.3" TFT Color |
| Color | 16M Colors | |||
| Display Area (mm) | 222.72 × 125.28 | 154.08 × 85.92 | 95.04 × 53.86 | |
| Resolution (dot) | 1024 × 600 | 800 × 480 | 480 × 272 | |
| Brightness Level | 10 Levels (by software) | |||
| Backlight Type | LED | |||
| Backlight Life | 50,000 hours | |||
| Touch | Touch Type | Analog resistive film | ||
| Resolution (Cell) | 1024 × 600 | 800 × 480 | 480 × 272 | |
| Touch Life | 1 million times or more | |||
| Interface | Serial COM1 |
RS-232C Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400–115.2kbps Connector: DSUB 9pin × 1 |
||
| Serial COM2 |
RS-232C, RS-422/485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400–115.2kbps Connector: DSUB 9pin × 1 |
RS-422/485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400–115.2kbps Connector: DSUB 9pin × 1 |
||
| Serial COM3 |
RS-485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400–115.2kbps Connector: DSUB 9pin × 1 |
RS-485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400–115.2kbps Connector: DSUB 9pin × 1 |
– | |
| Ethernet |
IEEE802.3/IEEE802.3u, 10BASE-T/100BASE-TX Connector: RJ-45 × 2 |
|||
| USB Host |
USB 2.0 Compatible, Output: 5Vdc/0.5A Support: USB Storage, USB Barcode Scanner (Standard Keyboard Protocol) Connector: USB Type A × 1 |
|||
| USB Device |
USB 2.0 Compatible, Max 5m Connector: USB-C × 1 |
|||
| Printer | Roll printer (EPSON protocol): RS-232C | |||
| Memory & Others | Screen memory | 128MB | ||
| Real Time Clock | Built in | |||
| Status LED | 1 LED (Operation) Built in | |||
| Power | Input Voltage | 24Vdc (20–28Vdc) | ||
| Power Consumption | 15W | |||
| Voltage Sag | 24Vdc, Within 10ms | |||
| Insulation Resistance | 500Vdc, 10MΩ | |||
| Environment | Operation Temperature (℃) | −10 ~ +50 | ||
| Storage Temperature (℃) | −20 ~ +60 | |||
| Operation Humidity (%RH) | 0 ~ 90 (No dew) | |||
| Atmosphere | No corrosive gas | |||
| Vibration Endurance | Amplitude: 10≤f≤25Hz (2G), X, Y, Z each direction (for 30 minutes) | |||
| Noise Immunity | 1000Vp-p (Pulse width 1μs) | |||
| Electrostatic Discharge | Contact discharge from EN61000-4-2: ±4kV | |||
| Shock Endurance | 10G X, Y, Z each direction (for 3 times) | |||
| Ground Connection | Class 3 (100Ω or less) | |||
| Protection Classification | IP54 | |||
| Certification (On Progress) | CE, UKCA | |||

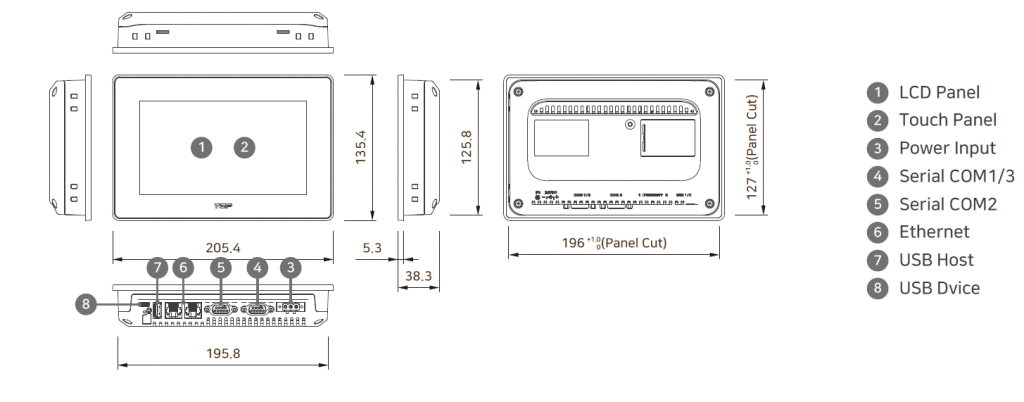

| Structure | Panel Cut (mm) | 256 × 166 | 197 × 127 | 120 × 91 |
| External Dimension (mm) | 265 × 175 × 38 | 205.4 × 135.4 × 38.3 | 126.6 × 97.6 × 38.2 | |
| Weight (kg) | 0.8 | 0.5 | 0.2 | |
| Cooling System | Natural air circulation | |||
| Case Material | Plastic | |||
