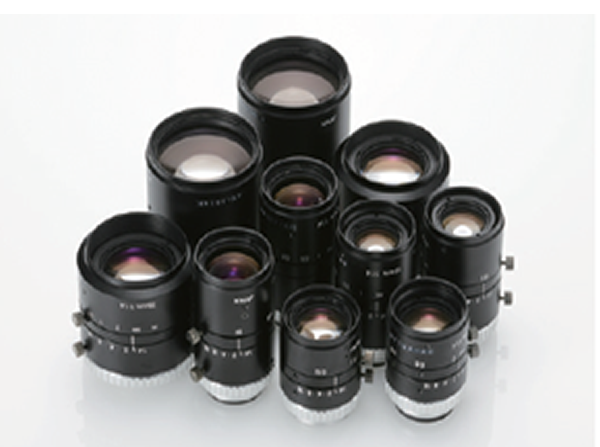

2/3″ Support
Liên hệ: 0243 8 771 700
● f6mm – f100mm, 13 models
● 2/3 sensor support, F1.4 brightness (exc:MK-5026C)
● Iris and focus are adjustable
● All models filter-ready
● f75mm????f100mm models support 1″ sensor
- Miễn phí vận chuyển
- Hỗ trợ kỹ thuật 24/7
- Bảo hành 1 năm, chăm sóc trọn đời
Mô tả

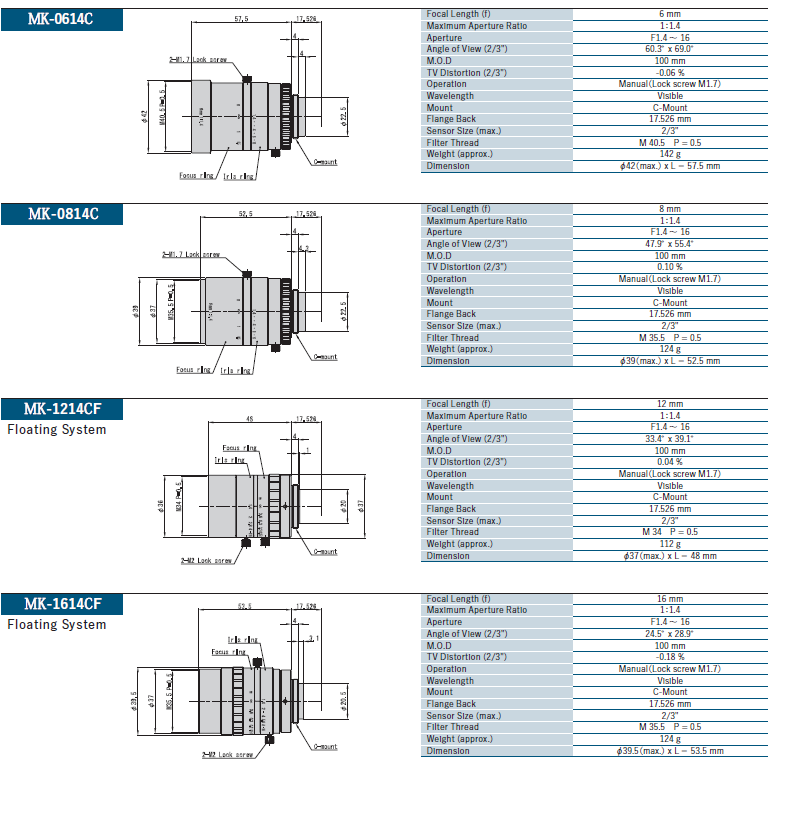

MK-0614C
| Specification | Value |
|---|---|
| Focal Length (f) | 6 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 60.3° × 69.0° |
| M.O.D | 100 mm |
| TV Distortion (2/3″) | -0.06% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 40.5 P = 0.5 |
| Weight (approx.) | 142 g |
| Dimension | Ø42 (max.) × L = 57.5 mm |
MK-0814C
| Specification | Value |
|---|---|
| Focal Length (f) | 8 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 47.9° × 55.4° |
| M.O.D | 100 mm |
| TV Distortion (2/3″) | 0.10% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 35.5 P = 0.5 |
| Weight (approx.) | 124 g |
| Dimension | Ø39 (max.) × L = 52.5 mm |
MK-1214CF — Floating System
| Specification | Value |
|---|---|
| Focal Length (f) | 12 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 33.4° × 39.1° |
| M.O.D | 100 mm |
| TV Distortion (2/3″) | 0.04% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 34 P = 0.5 |
| Weight (approx.) | 112 g |
| Dimension | Ø37 (max.) × L = 48 mm |
MK-1614CF — Floating System
| Specification | Value |
|---|---|
| Focal Length (f) | 16 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 24.5° × 28.9° |
| M.O.D | 100 mm |
| TV Distortion (2/3″) | -0.18% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 35.5 P = 0.5 |
| Weight (approx.) | 124 g |
| Dimension | Ø39.5 (max.) × L = 53.5 mm |

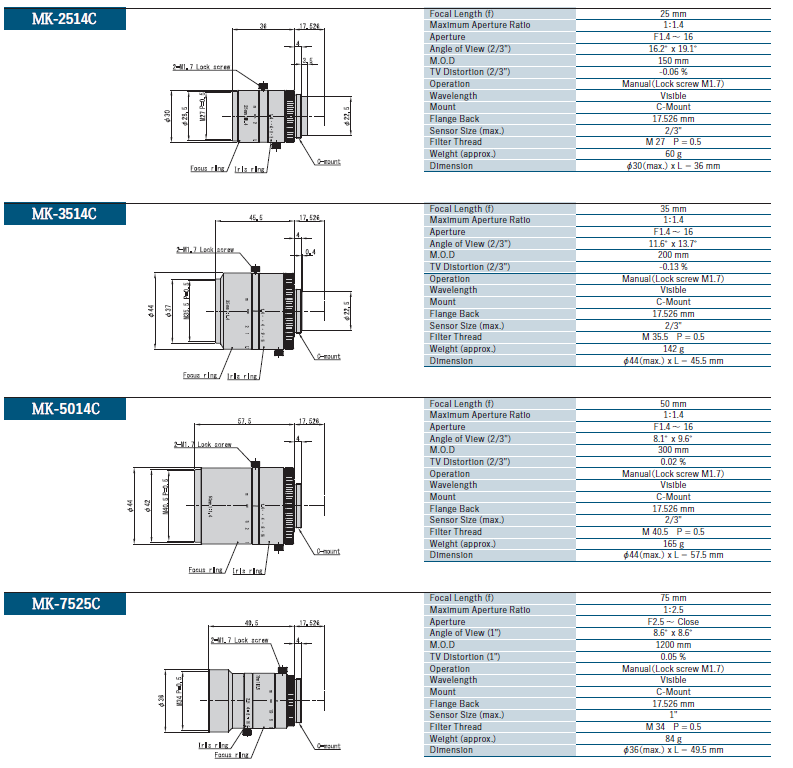

MK-2514C
| Specification | Value |
|---|---|
| Focal Length (f) | 25 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 16.2° × 19.1° |
| M.O.D | 150 mm |
| TV Distortion (2/3″) | -0.06% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 27 P = 0.5 |
| Weight (approx.) | 60 g |
| Dimension | Ø30 (max.) × L = 36 mm |
MK-3514C
| Specification | Value |
|---|---|
| Focal Length (f) | 35 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 11.4° × 13.7° |
| M.O.D | 200 mm |
| TV Distortion (2/3″) | -0.13% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 35.5 P = 0.5 |
| Weight (approx.) | 142 g |
| Dimension | Ø44 (max.) × L = 45.5 mm |
MK-5014C
| Specification | Value |
|---|---|
| Focal Length (f) | 50 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (2/3″) | 8.1° × 9.6° |
| M.O.D | 300 mm |
| TV Distortion (2/3″) | 0.02% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 2/3″ |
| Filter Thread | M 40.5 P = 0.5 |
| Weight (approx.) | 165 g |
| Dimension | Ø44 (max.) × L = 57.5 mm |
MK-7525C
| Specification | Value |
|---|---|
| Focal Length (f) | 75 mm |
| Maximum Aperture Ratio | 1:2.5 |
| Aperture | F2.5 ～ Close |
| Angle of View (1″) | 8.6° × 8.6° |
| M.O.D | 1200 mm |
| TV Distortion (1″) | 0.05% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 34 P = 0.5 |
| Weight (approx.) | 84 g |
| Dimension | Ø36 (max.) × L = 49.5 mm |
MK-10028C
| Specification | Value |
|---|---|
| Focal Length (f) | 100 mm |
| Maximum Aperture Ratio | 1:2.8 |
| Aperture | F2.8 ～ Close |
| Angle of View (1″) | 6.6° × 6.6° |
| M.O.D | 2000 mm |
| TV Distortion (1″) | 0.08% |
| Operation | Manual (Lock screw M1.7) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 37.5 P = 0.5 |
| Weight (approx.) | 104 g |
| Dimension | Ø39 (max.) × L = 66.5 mm |
