1″ Support
Liên hệ: 0243 8 771 700
● 1″ sensor support
● f6mm – f50mm, 7 models
● F1.4 brightness for high speed CMOS sensor
● Low distortion ???? high contrast
- Miễn phí vận chuyển
- Hỗ trợ kỹ thuật 24/7
- Bảo hành 1 năm, chăm sóc trọn đời
Mô tả

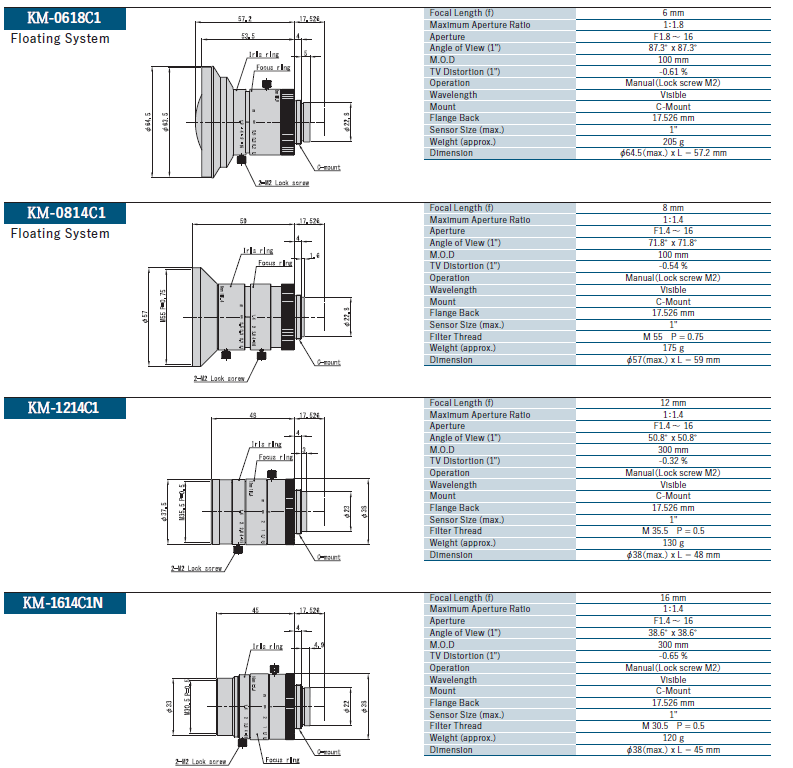

KM-0618C1 — Floating System
| Specification | Value |
|---|---|
| Focal Length (f) | 6 mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F1.8 ～ 16 |
| Angle of View (1″) | 87.3° × 87.3° |
| M.O.D | 100 mm |
| TV Distortion (1″) | -0.61% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Weight (approx.) | 205 g |
| Dimension | Ø64.5 (max.) × L = 57.2 mm |
KM-0814C1 — Floating System
| Specification | Value |
|---|---|
| Focal Length (f) | 8 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (1″) | 71.8° × 71.8° |
| M.O.D | 100 mm |
| TV Distortion (1″) | -0.54% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 55 P = 0.75 |
| Weight (approx.) | 175 g |
| Dimension | Ø57 (max.) × L = 59 mm |
KM-1214C1
| Specification | Value |
|---|---|
| Focal Length (f) | 12 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (1″) | 50.8° × 50.8° |
| M.O.D | 300 mm |
| TV Distortion (1″) | -0.32% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 35.5 P = 0.5 |
| Weight (approx.) | 130 g |
| Dimension | Ø38 (max.) × L = 48 mm |
KM-1614C1N
| Specification | Value |
|---|---|
| Focal Length (f) | 16 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (1″) | 38.6° × 38.6° |
| M.O.D | 300 mm |
| TV Distortion (1″) | -0.65% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 30.5 P = 0.5 |
| Weight (approx.) | 120 g |
| Dimension | Ø38 (max.) × L = 45 mm |

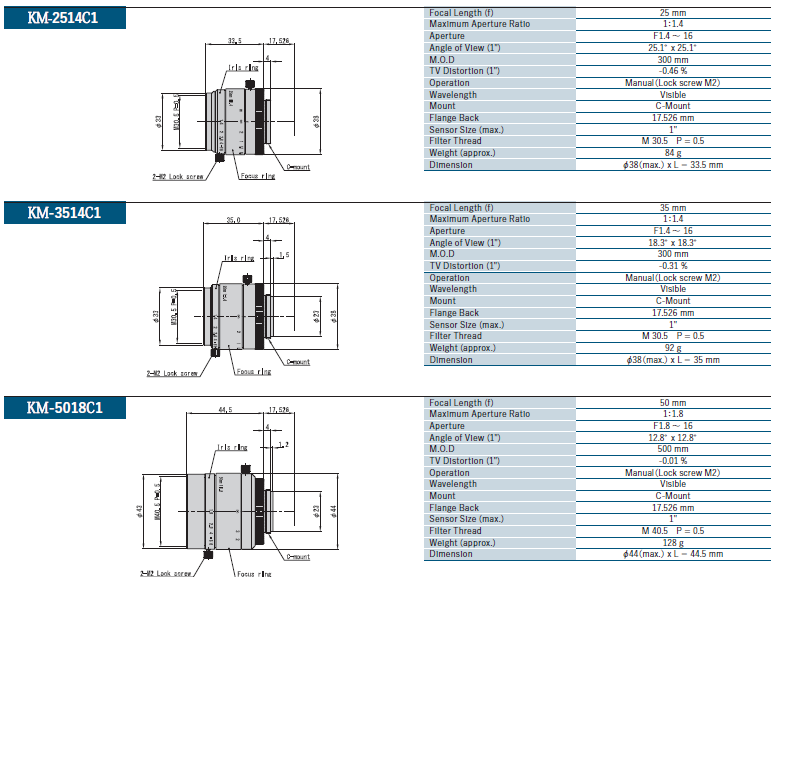

KM-2514C1
| Specification | Value |
|---|---|
| Focal Length (f) | 25 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (1″) | 25.1° × 25.1° |
| M.O.D | 300 mm |
| TV Distortion (1″) | -0.46% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 30.5 P = 0.5 |
| Weight (approx.) | 84 g |
| Dimension | Ø38 (max.) × L = 33.5 mm |
KM-3514C1
| Specification | Value |
|---|---|
| Focal Length (f) | 35 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Aperture | F1.4 ～ 16 |
| Angle of View (1″) | 18.3° × 18.3° |
| M.O.D | 300 mm |
| TV Distortion (1″) | -0.31% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 30.5 P = 0.5 |
| Weight (approx.) | 92 g |
| Dimension | Ø38 (max.) × L = 35 mm |
KM-5018C1
| Specification | Value |
|---|---|
| Focal Length (f) | 50 mm |
| Maximum Aperture Ratio | 1:1.8 |
| Aperture | F1.8 ～ 16 |
| Angle of View (1″) | 12.8° × 12.8° |
| M.O.D | 500 mm |
| TV Distortion (1″) | -0.01% |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1″ |
| Filter Thread | M 40.5 P = 0.5 |
| Weight (approx.) | 128 g |
| Dimension | Ø44 (max.) × L = 44.5 mm |
