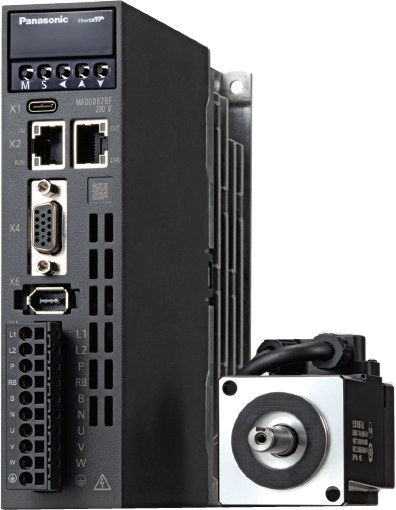

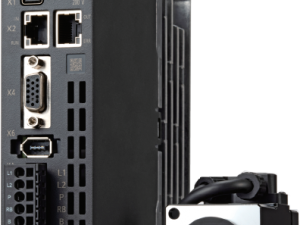

Servo System Minas E7 (New)
Liên hệ: 0243 8 771 700
performSpeed response frequency 3.0 kHz
Max. motor rotational speed 6,000 r/min
Encoder resolution 20 bit
Motor output 50-750 W
- Miễn phí vận chuyển
- Hỗ trợ kỹ thuật 24/7
- Bảo hành 1 năm, chăm sóc trọn đời
Simple & Easy to useA7
Engineered with essential performance for target applications, enabling simple positioning.
• Two-degree-of-freedom control mode
• Load variation suppression control
• Friction torque compensation

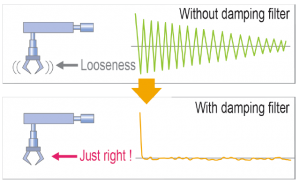

• Damping filter Notch filterControl
A7 platform compatibilityEngineered
Sharing the A7 platform, MINAS E7 uses PANATERM Ver.7 to provide simple and familiar setup for everyday applications.

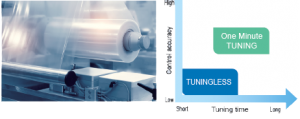

Two tuning options available.
Accuracy– Time Balance High-accuracy Approximately High-precision auto-tuning quickly adapted to equipment characteristics
Save set up time Run immediately 0secSimple real-time automatic tuning according to equipment loadOne
Driver Specifications
| Series | MINAS E7S | MINAS E7B | |
|---|---|---|---|
| Product numbers | M□DU□□2SF (50 W – 750 W) |
M□DU□□2BF (50 W – 750 W) |
|
| Voltage specification | Single phase 200 – 240 V, 50 / 60 Hz | ||
| Output Range | 50 W – 750 W | ||
| Ambient operating conditions |
Temperature | Operating Temperature 0 °C to 55 °C (can be used at 45 °C to 55 °C when derated) |
|
| Humidity | Operating / storage humidity: 20 % to 85 % RH or less | ||
| Altitude | 1000 m or less | ||
| Vibration | 5.88 m/s² or less 10 Hz to 60 Hz | ||
| Pollution degree | 2 (IEC 60664-1) | ||
| Response frequency | 3.0 kHz | ||
| Carrier Frequency | Max 12 kHz | ||
| Communication function | USB Type C / Modbus RTU | USB Type C / EtherCAT | |
| Encoder resolution | 20 bit | ||
| Pulse input | Dedicated interface for long-line drive |
Max.8 Mpps | – |
| Pulse train interface | Long-Line Drive: Max.500 kpps Open Collector: Max.200 kpps |
– | |
| General purpose Input/Output | 8/5 | 5/4 | |
| Pulse output | 3 | – | |
| Digital display | 5-Digit 7-Segment | ||
| Keypad operator | 5 | ||
Motor Specifications
| Motor part number | Unit | MHMF5AZC1□2 | MHMF012C1□2 | MHMF022C1□2 | MHMF042C1□2 | MHMF082C1□2 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Output | W | 50 | 100 | 200 | 400 | 750 | |||||
| Brake | – | No brake | With brake |
No brake | With brake |
No brake | With brake |
No brake | With brake |
No brake | With brake |
| Rotor Inertia | x10-4 kg.m2 | 0.038 | 0.042 | 0.071 | 0.074 | 0.29 | 0.31 | 0.56 | 0.58 | 1.57 | 1.67 |
| Rated rotation speed | r / min | 3000 | 3000 | 3000 | 3000 | 3000 | |||||
| Maximum rotation speed |
r / min | 6000 | 6000 | 6000 | 6000 | 6000 | |||||
| Rated torque | N·m | 0.16 | 0.32 | 0.64 | 1.27 | 2.39 | |||||
| Instantaneous maximum torque |
N·m | 0.48 | 0.96 | 1.92 | 3.81 | 7.17 | |||||
| Rated current | A (rms) | (1.1) | (1.1) | (1.4) | (2.1) | (3.8) | |||||
| Instantaneous maximum current |
A0-p | (4.7) | (4.7) | (5.9) | (8.9) | (16.1) | |||||
| Thermal class | – | 155 (F) | |||||||||
| Vibration class | – | V-15 | |||||||||
| Supply voltage | VAC | 200 | |||||||||
External Dimensions
